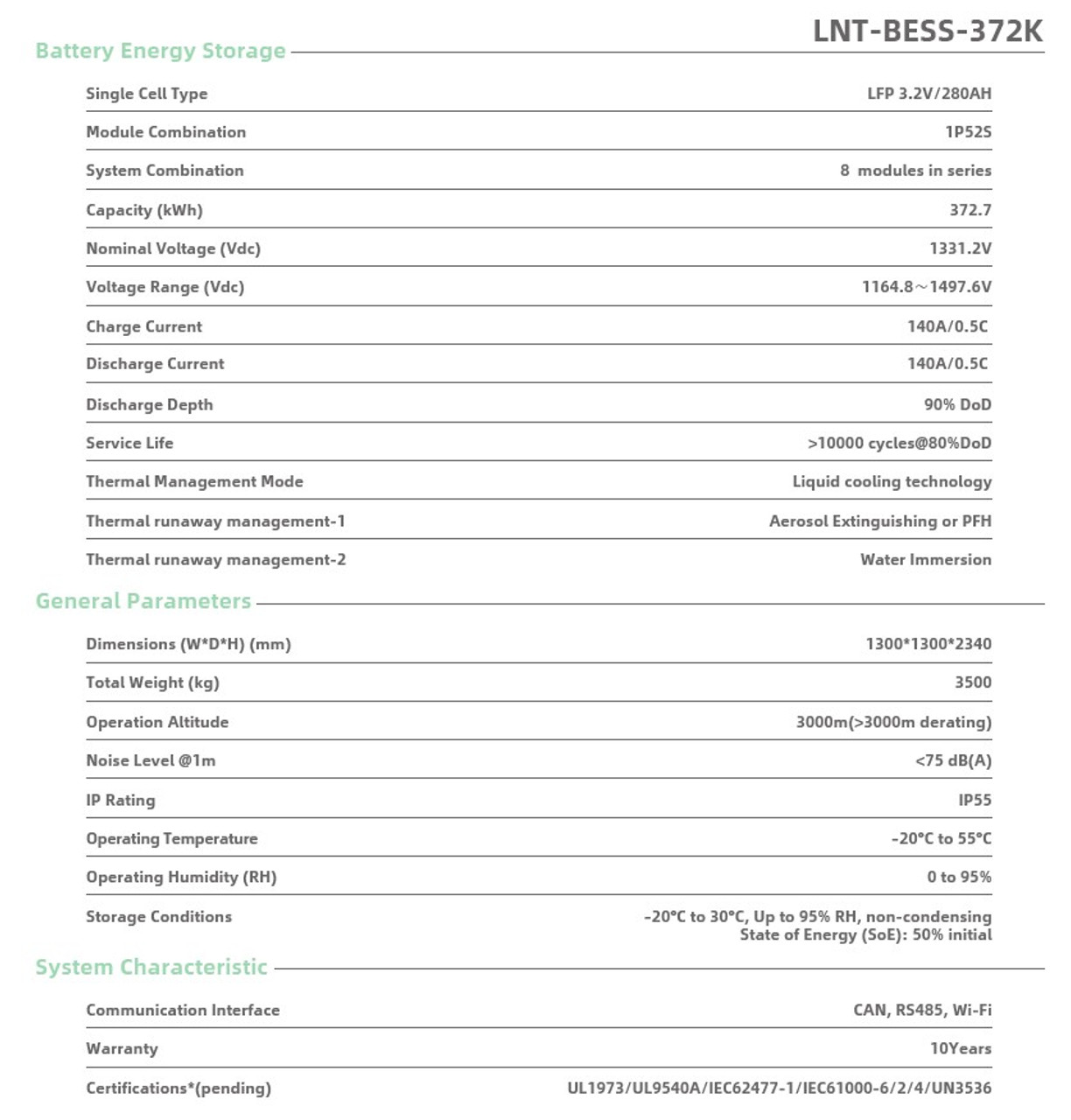

| Model No | LTN-BESS-372K |
| Battery Energy Storage | |
Single Cell Type | LFP 3.2V/280AH |
Module Combination | 1P52S |
System Combination | 8 modules in series |
Capacity (kWh) | 372.7 |
Nominal Voltage (Vdc) | 1331.2V |
Voltage Range (Vdc) | 1164.8～1497.6V |
Charge/Discharge Current | 140A/0.5C |
Discharge Depth | 90% DoD |
Service Life | >10000 cycles@80%DoD |
Thermal Management Mode | Liquid cooling technology |
Thermal runaway management-1 | Aerosol Extinguishing or PFH |
Thermal runaway management-2 | Water Immersion |
| General Parameters | |
Dimensions (W*D*H) (mm) | 1300*1300*2340 |
Total Weight (kg) | 3500 |
Operation Altitude | 3000m(>3000m derating) |
Noise Level @1m | <75> |
IP Rating | IP55 |
| Operating Temperature | –20°C to 55°C |
| Operating Humidity (RH) | 0 to 95% |
| Storage Conditions | –20°C to 30°C, Up to 95% RH, non-condensing State of Energy (SoE): 50% initial |
| System Characteristic | |
| Communication Interface | CAN, RS485, Wi-Fi |
| Warranty | 10Years |
| Certifications*(pending) | UL1973/UL9540/UL9540A/IEC62619/UN38.3 |

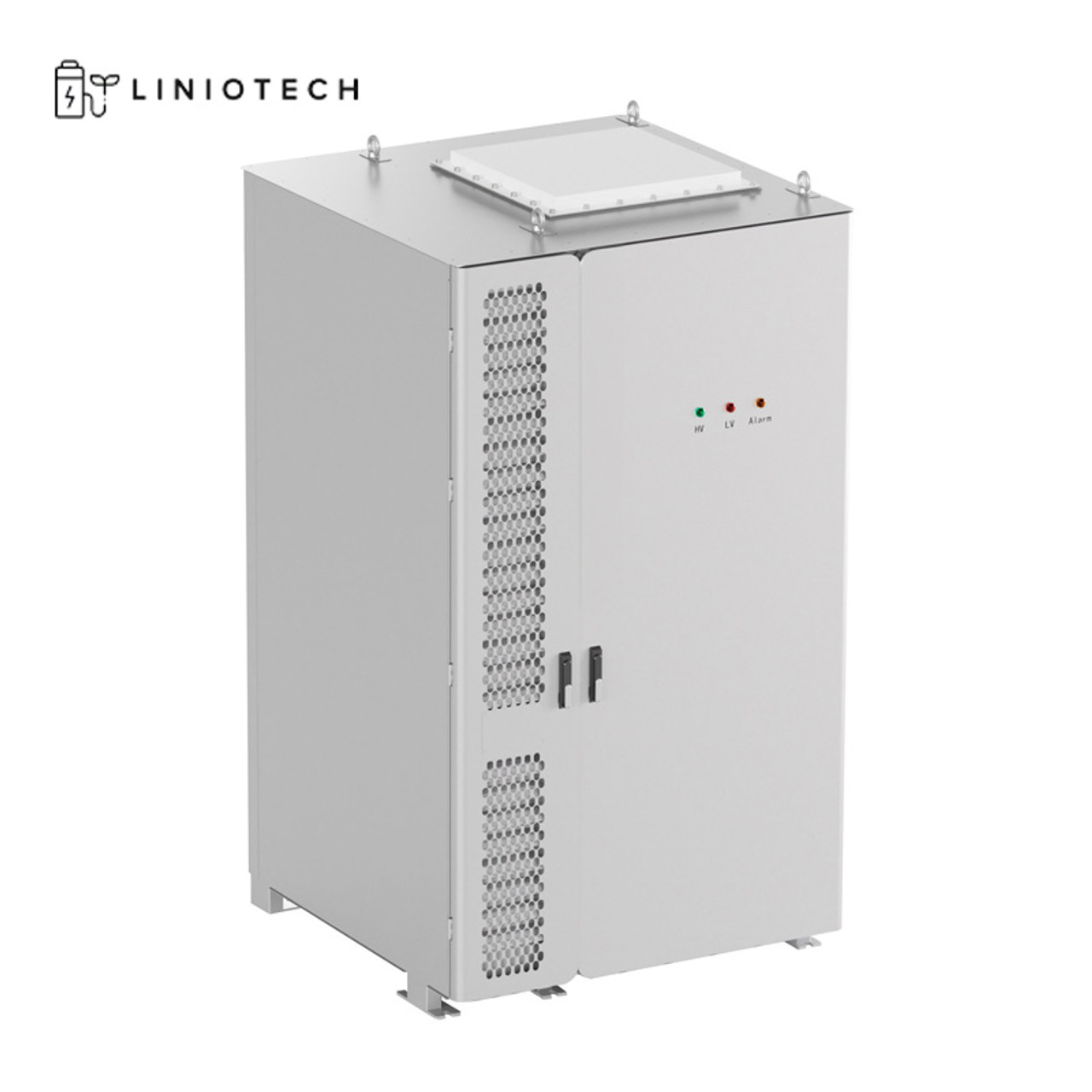

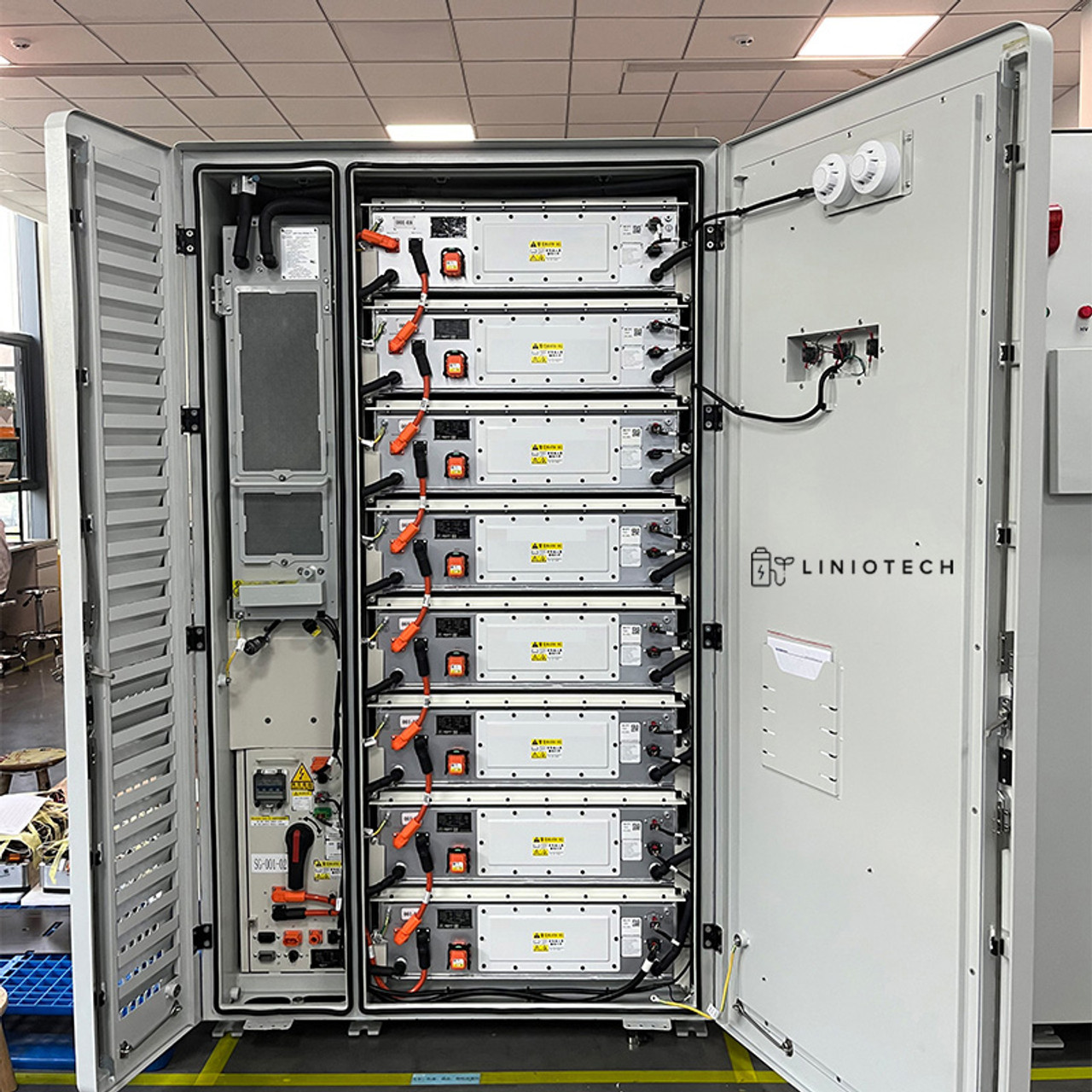

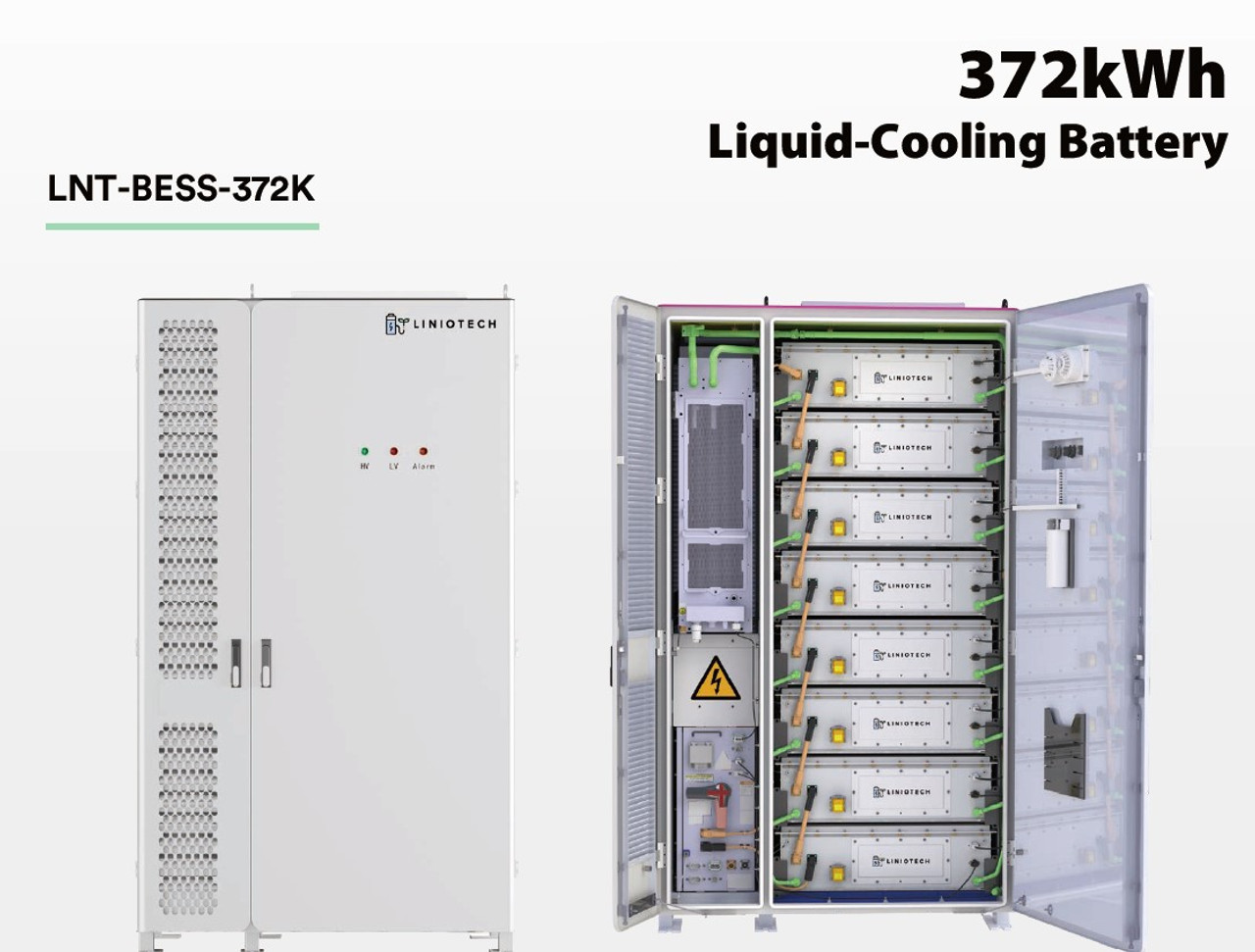

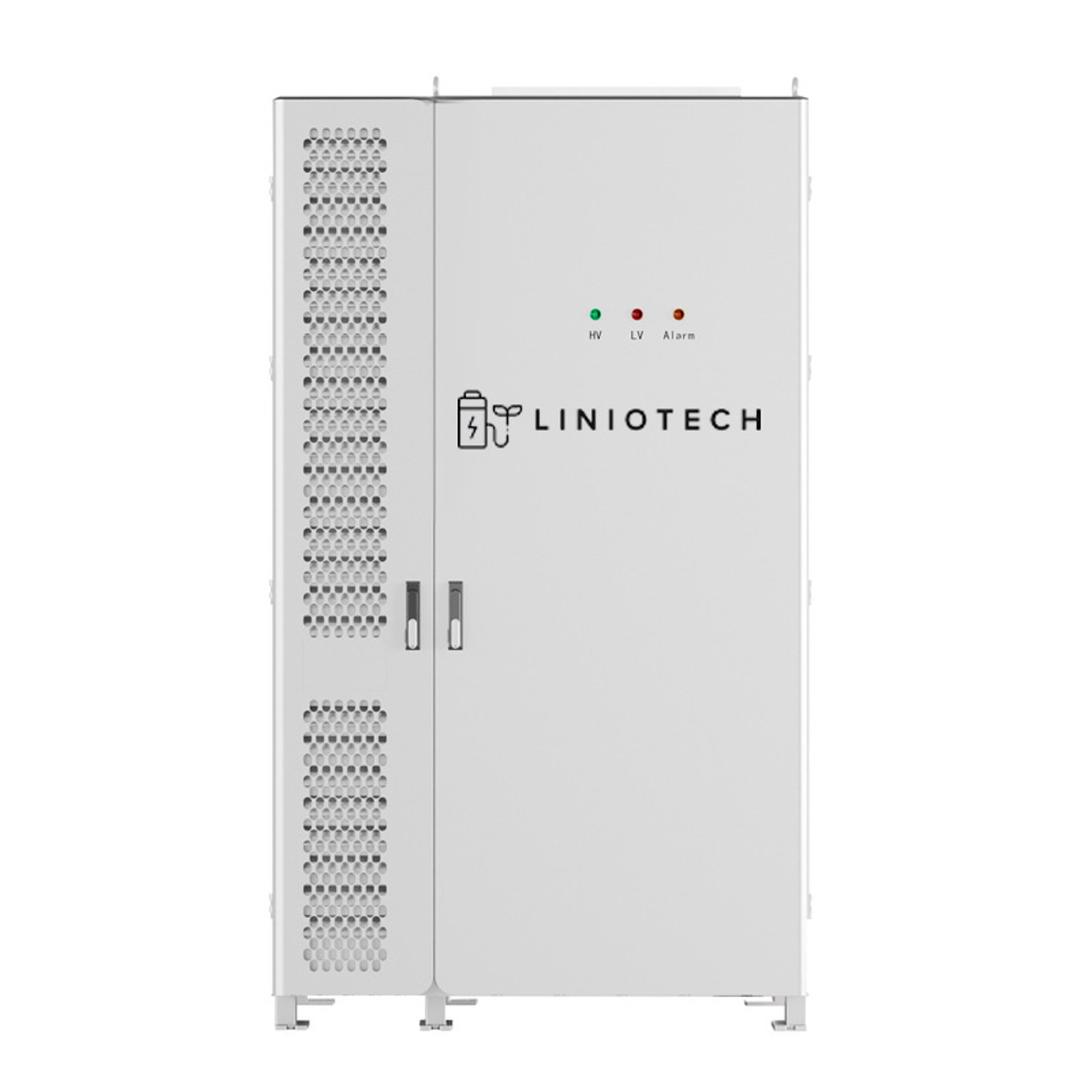

BESS-372K, the liquid cooling battery storage cabinet that offers high safety, efficiency, and convenience. Equipped with high-quality phosphate iron lithium battery cells and advanced safety features, it ensures safe and reliable operation. The high-efficiency BMS technology eliminates series losses and reduces module inconsistency, resulting in a longer lifespan of more than 10 years. Additionally, the efficient thermal management system maintains a temperature difference of less than 3°C among cells. With its standardized design and modular structure, it's easy to install and maintain, making it an ideal solution for businesses seeking to optimize their energy usage and reduce costs.
